Titanium Seamless Tubes For Shell and Tubular Heat Exchanger

Trung Quốc Titanium Seamless Tubes For Shell and Tubular Heat Exchanger nhà cung cấp
Titanium Seamless Tubes For Shell and Tubular Heat Exchanger nhà cung cấp Titanium Seamless Tubes For Shell and Tubular Heat Exchanger nhà cung cấp

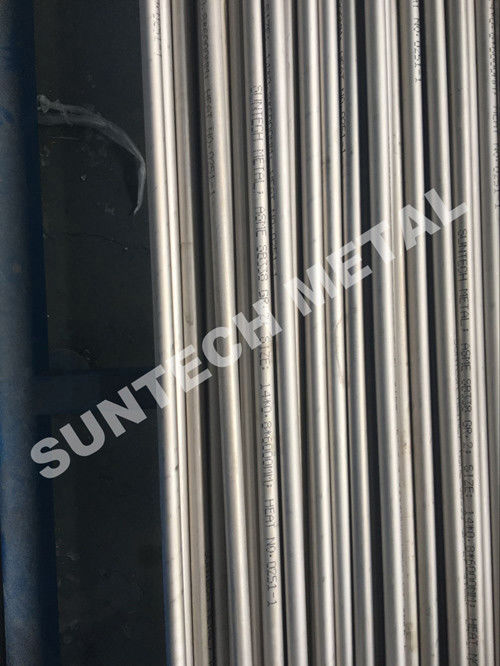

Hình ảnh lớn :  Titanium Seamless Tubes For Shell and Tubular Heat Exchanger

Thông tin chi tiết sản phẩm:

Place of Origin: CHINA
Hàng hiệu: SUNTECH
Chứng nhận: EN10204-3.1
Model Number: 14*0.8*6000

Thanh toán:

Minimum Order Quantity: 200
Packaging Details: SEAWORTHY SHIPPING
Delivery Time: 40DAYS
Supply Ability: 30TON/YEAR
Chi tiết sản phẩm
Name: ASTM B338 Titanium Seamless Tube Wall Thickness: 0.4mm
OD: 14mm Length: 6000mm
Grades: Gr2 Technique: Seamless
Surface: Acid Pickling, CNC Lathe Surface Characteristic: Rustproof and Corrosion Resistance
Status: Annealed

Sample Features:
1) Type: Titanium Seamless Tube
2) Standard: ASME SB338 Gr.2
3) Wall Thickness: 0.4mm
4) OD: Φ 14 mm
5) Length: 6000mm
6) Applications: Industrail Heater
7) Packing: Plywood cases
8) Grade: a) Gr.1(CP titanium, low oxygen)
b) Gr.2(CP titanium, standard oxygen)
c) Gr.7( Ti-Pa, standard oxygen)
d) Gr.9(Ti-3Al-2.5V)
e) Gr.11( Ti-Pa, low oxygen)
f) Gr.12(Ti-Mo-Ni)
g) Gr.16(Ti-Pa,standard oxygen)
h) Gr.17(Ti-Pa,low oxygen)
9)Products treatment: Annealed or CWSR
10)Package:Poly-wooden cases

Product performance
1. Low Density and High Strength
2. Excellent Corrosion Resistance
3. Good resistance to effect of heat
4. Excellent Bearing to cryogenic property
5. Nonmagnetic and Non-toxic
6. Good thermal properties
7. Low Modulus of Elasticity

Application
1) Chemical industry
2) Petrochemical industry
3) Machining field, Automobile field, etc.
4) Desalination of sea water
5) Textile printing and dyeing



Category



Standard



Actual Value



Judgment



Length

SB338;

L≤6000+7mm

(6002~6003)mm





Acceptable



Thickness

SB338;

Thk0.8±0.08mm

(0.75~0.79)mm





Acceptable







Outer Diameter

SB338;

OD14±0.1mm

13.93~13.98 mm

Acceptable





Titanium Seamless Tubes For Shell and Tubular Heat Exchanger

Titanium Seamless Tubes For Shell and Tubular Heat Exchanger

Titanium Seamless Tubes For Shell and Tubular Heat Exchanger
